Opinion by Alan J. Chwick
Lately, I’ve been questioned why my neighbor’s pocket pistol has been jamming.
On inspection and questioning, I discovered that my neighbor had bought some hollow point ammo for his ‘old’ .32 ACP pocket pistol. And therein lay the problem.
.32 ACP (Automatic Colt Pistol) Cartridge
The .32 ACP (Automatic Colt Pistol) cartridge is one of the most widely known and historically significant handgun calibers. Initially developed by John Browning and introduced in 1899 for his Colt Model 1903 pocket pistol, the .32 ACP has seen continuous use in a variety of firearms, both military and civilian. It is a small caliber cartridge, often seen as a balance between ease of use, relatively low recoil, and adequate stopping power in a self-defense weapon.
Despite its status as a “pocket” caliber, the .32 ACP has been the subject of a number of technical challenges, one of the most significant being the issue of “rim lock,” a malfunction particular to certain pistols chambered in .32 ACP.
The .32 ACP cartridge itself, as designed by Browning, is a relatively simple round, with a bullet diameter of .312 inches, a cartridge length of about 0.680 inches, and a small extraction rim. It was designed to work in the small, compact pistols that were becoming increasingly popular at the turn of the 20th century. It was an ideal choice for personal defense pistols, particularly for those who desired a small, easy-to-carry weapon for concealed carry. Its popularity extended to law enforcement and military forces in various countries, and the .32 ACP continued to be produced in significant quantities throughout the 20th century.
Over the years, the .32 ACP cartridge has been chambered in numerous pistols and revolvers from various manufacturers around the world. In addition to the Colt Model 1903, the cartridge was adopted by a number of other notable handguns, including the Walther PP, the Beretta Model 3032, and the CZ-70, to name just a few.
The most notable mechanical issue associated with the .32 ACP cartridge is the phenomenon known as “rim lock.”
What is Rim Lock?
Rim lock occurs when the cartridges in a magazine become misaligned due to the shape and arrangement of the rimmed cartridge, preventing a round from feeding properly into the chamber.
Rim lock happens when the cartridges in a magazine are not correctly oriented due to the interaction of the cartridge rims. In a properly functioning magazine, cartridges are stacked neatly on top of each other, and each cartridge is fed smoothly into the chamber during the firing cycle. In certain pistols, however, the rims of the cartridges can become “locked” or misaligned, preventing one cartridge from feeding into the chamber.
The problem arises because the .32 ACP cartridge has a very small rim in comparison to the case body. Its lack of a pronounced rim or a tapering profile, especially when using a magazine with a straight-feed design, increases the potential for this malfunction. When cartridges are stacked in a magazine, one or more may shift, causing the rim of one cartridge to catch on the base of another.
This results in a failure to feed and may cause a jam or misfire in the firearm.
The first documented occurrences of rim lock were noted in early semi-automatic pistols chambered in .32 ACP, such as the Walther PPK. Introduced in 1931, the PPK was one of the most popular pistols to use this cartridge. It was an elegant and compact design, but early versions exhibited issues with rim lock. When cartridges in the magazine failed to feed properly, they would often fail to fire, which could be dangerous, particularly in defensive situations.
Rim lock was a particularly vexing issue for users because it was not always predictable. In some cases, the problem occurred intermittently, often depending on the quality and design of the magazine and the condition of the ammunition being used. While rim lock is rare in modern versions of the .32 ACP pistols because of very specific designs, it was more prevalent during the early years of the cartridge’s use due to less advanced magazine and pistol designs.
Early manufacturers responded to the rim lock issue in various ways. One of the most common design solutions was the adoption of a tapered magazine, which allowed the cartridges to sit in a more staggered arrangement. Others designed better magazines that matched the .32 ACP OAL. These designs prevented the rims from interfering with each other and minimized the chance of misfeeds.
Another early workaround was the use of more precise ammunition, as variations in case dimensions could exacerbate the issue. Ammunition manufacturers began producing .32 ACP cartridges with more consistent case dimensions and better-quality materials, which helped reduce the likelihood of rim lock in semi-automatic pistols.
Manufacturers and gunsmiths alike further worked to refine the design of pistols chambered in .32 ACP to address this issue. Over time, the changes to magazine design, ammunition specifications, and overall pistol construction minimized the frequency of rim lock, though the problem never completely disappeared. By the mid-20th century, most of the semi-automatic pistols chambered in .32 ACP had improved their reliability, reducing the risk of rim lock to a manageable level.

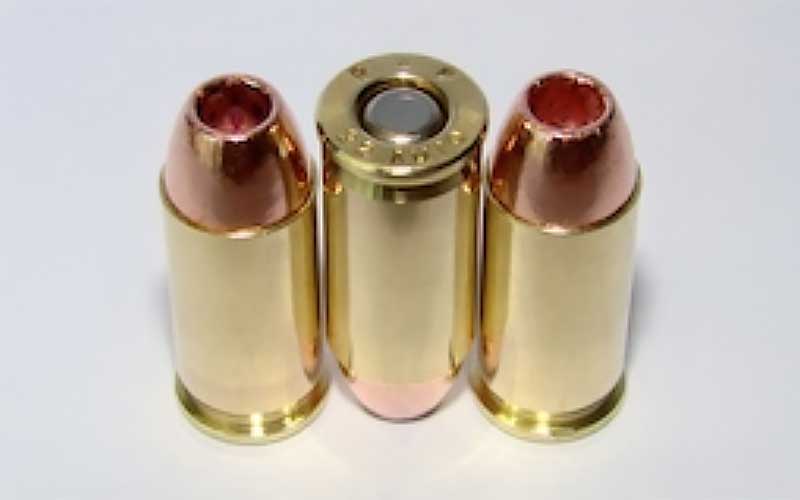

Then, there was the boom in hollow point cartridges, which normally have a shorter OAL than their ball ammo brothers. This brought the rim lock issue to the forefront again.
Today, the .32 ACP is less commonly used than it was in the early 20th century, as larger calibers like the 9mm have primarily supplanted it for self-defense purposes.
Nonetheless, the .32 ACP remains a popular choice for compact, concealed carry pistols due to its size and relatively low recoil. Many modern .32 ACP pistols, like those from Beretta, Seecamp, and Kel-Tec, have largely eliminated the rim lock problem through improved magazine designs and more refined manufacturing techniques. These new pistols are designed specifically to use hollow point .32 ACP rounds, and they usually have issues loading ball ammo because of their OAL.
Many of these pistols, in their manuals, actually specify ammo by brand because of its OAL.
The rim lock issue reminds us of the challenges faced by early semi-automatic handgun designs and the importance of fine-tuning firearm mechanisms to ensure reliability. While rim lock is not as widespread a problem in contemporary .32 ACP pistols, it remains an important part of the cartridge’s technical history and illustrates how firearm design has evolved over time to address challenges of feeding, cycling, and reliability.
The .32 ACP cartridge is a historically significant and influential caliber whose development coincided with the rise of the semi-automatic handgun. Over time, innovations in firearm design, magazine construction, and ammunition manufacturing helped mitigate the risks associated with rim lock. Today, while the .32 ACP is not as popular as other calibers, it continues to have a place in the world of concealed carry and backup pistols.
The history of the .32 ACP, particularly its rim lock issue, serves as a fascinating chapter in the evolution of semi-automatic pistol design and provides valuable insights into the ongoing pursuit of reliability and functionality in firearms.
